Spike series
LT2101

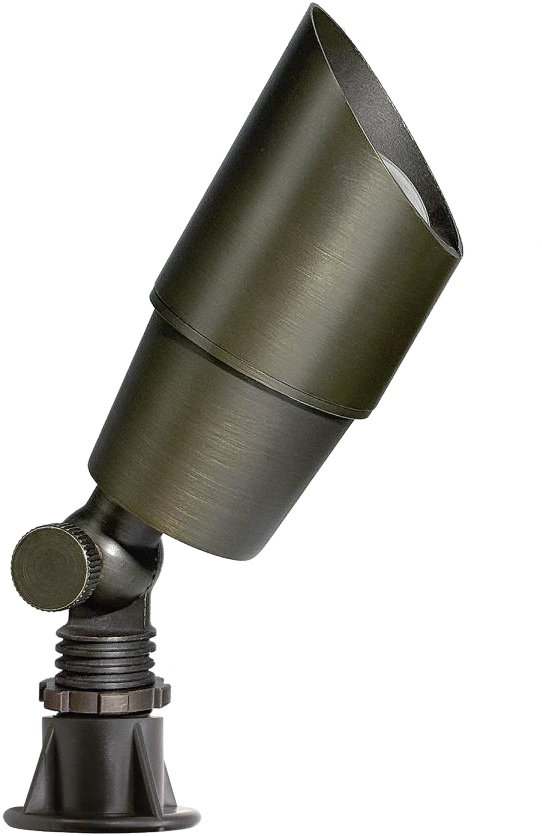

Brass spike uplight for facades, planting and specimen trees. Lamp not included.
Application
A brass spike uplight for MR16 lamps, set in planting beds and gravel margins to light facades, hedging and specimen trees from grade. Photometrics follow the lamp: beam angle, output and colour rendering are set by the MR16 fitted, so one housing covers narrow accent work through to a soft wash.
The spike mount repositions as planting grows. Lift, move and re-aim without disturbing the circuit.
Start a project enquiry →Specification
| Lamp | MR16 — not included |
| Max wattage | Up to 50 W |
| Lamp output | 450 lm (LT1016A) |
| CCT | 2700 K (lamp) |
| CRI | 85 (lamp) |
| Beam | 15° (lamp) |
| Body | Solid brass |
| Lens | Clear convex glass |
| Dimensions | 53.5 mm Ø × 125.4 mm |
| Ingress | IP65 |
| Supply | 9–17 V AC/DC |
Dimensions, body, lens, ingress and supply are transcribed from Lutou’s LT2101 sheet. Lamp values are for the LT1016A MR16 — a different MR16 changes output, beam and CRI.
Dimensions
Dimension drawing from Lutou’s LT2101 sheet. Millimetre values are the manufacturer’s own and take precedence over the inch conversions printed alongside them.
