Spike series
LT2108

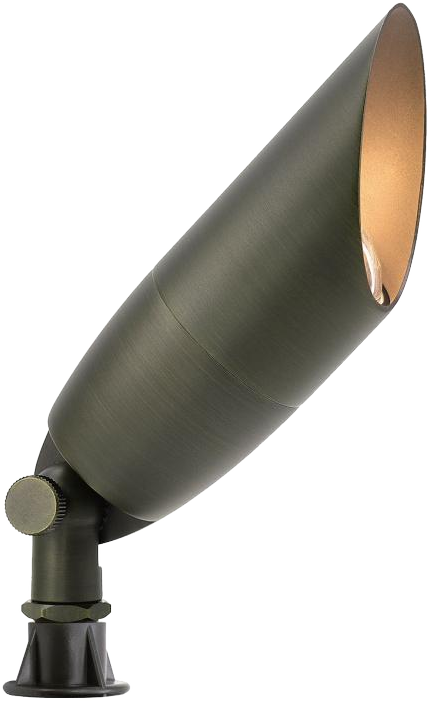

Long-shroud brass spike uplight for sightline positions where the source must stay hidden. Lamp not included.
Application
The longest housing in the uplight range at 180.5 mm. The extra barrel sets the lamp deep behind the aperture, so the cut-off is tight and the fixture reads as a dark opening rather than a bright point when viewed off-axis.
Specify it where the fixture sits between the viewer and the lit surface: lawn edges facing a terrace, beds below a window line, or any run seen from a seated position. Where the fixture is behind planting and out of the sightline, the shorter LT2101 does the same optical work in less space.
Photometrics follow the lamp fitted. Beam angle, output and colour rendering are set by the MR16 in the housing, so one fixture covers narrow accent work through to a wider wash.
Start a project enquiry →Specification
| Lamp | MR16 — not included |
| Max wattage | Up to 50 W |
| Lamp output | 450 lm (LT1016A) |
| CCT | 2700 K (lamp) |
| CRI | 85 (lamp) |
| Beam | 15° (lamp) |
| Body | Solid brass |
| Lens | Clear convex glass |
| Dimensions | 61.0 mm Ø × 180.5 mm |
| Lead | 1.8 m, pre-stripped |
| Ingress | IP65 |
| Supply | 9–17 V AC/DC |
Dimensions, body, lens, lead, ingress and supply are transcribed from Lutou’s LT2108 sheet. Lamp values are for the LT1016A MR16. A different MR16 changes output, beam and CRI.
Dimensions
Dimension drawing from Lutou’s LT2108 sheet. Millimetre values are the manufacturer’s own and take precedence over the inch conversions printed alongside them.
